Description

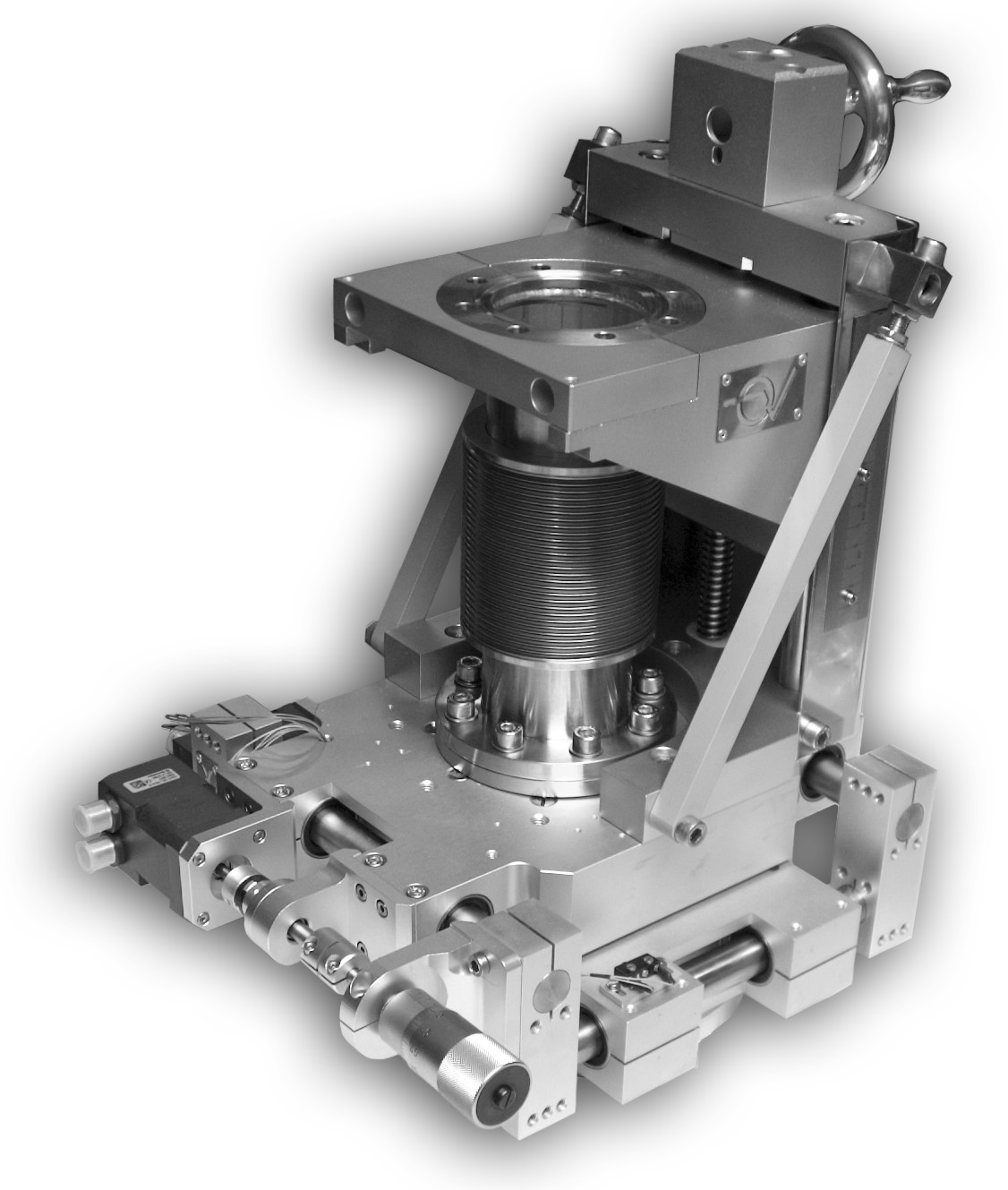

The HPM High Precision Manipulators are mounted on a DN 160CF flange and come with XY-strokes of 12.5 mm and 25 mm (full square range) respectively, and up to 1000 mm Z-Stroke.
Motion is possible via large barrel types micrometers with 5 microns graduations. These are easily interchangeable with stepper motor modules, while manual operation is still possible with removed motors.
HPM 100, +/- 12.5 mm XY-Manipulator
| Design | DN 160CF flange mounted XY-motion module |
| Stroke (full square range) | +/- 12.5 mm |
| Resolution | 5 μm (manual) – 0.5 μm (motorized) |
| Repeatability | 5 μm (manual) – 1 μm (motorized) |
| Max. speed | 2 mm/sec |
HPM 200, +/- 25 mm XY-Manipulator
| Design | DN 160CF flange mounted XY-motion module |
| Stroke (full square range) | +/- 25 mm |
| Resolution | 5 μm (manual) – 0.5 μm (motorized) |
| Repeatability | 5 μm (manual) – 1 μm (motorized) |
| Max. speed | 2 mm/sec |
