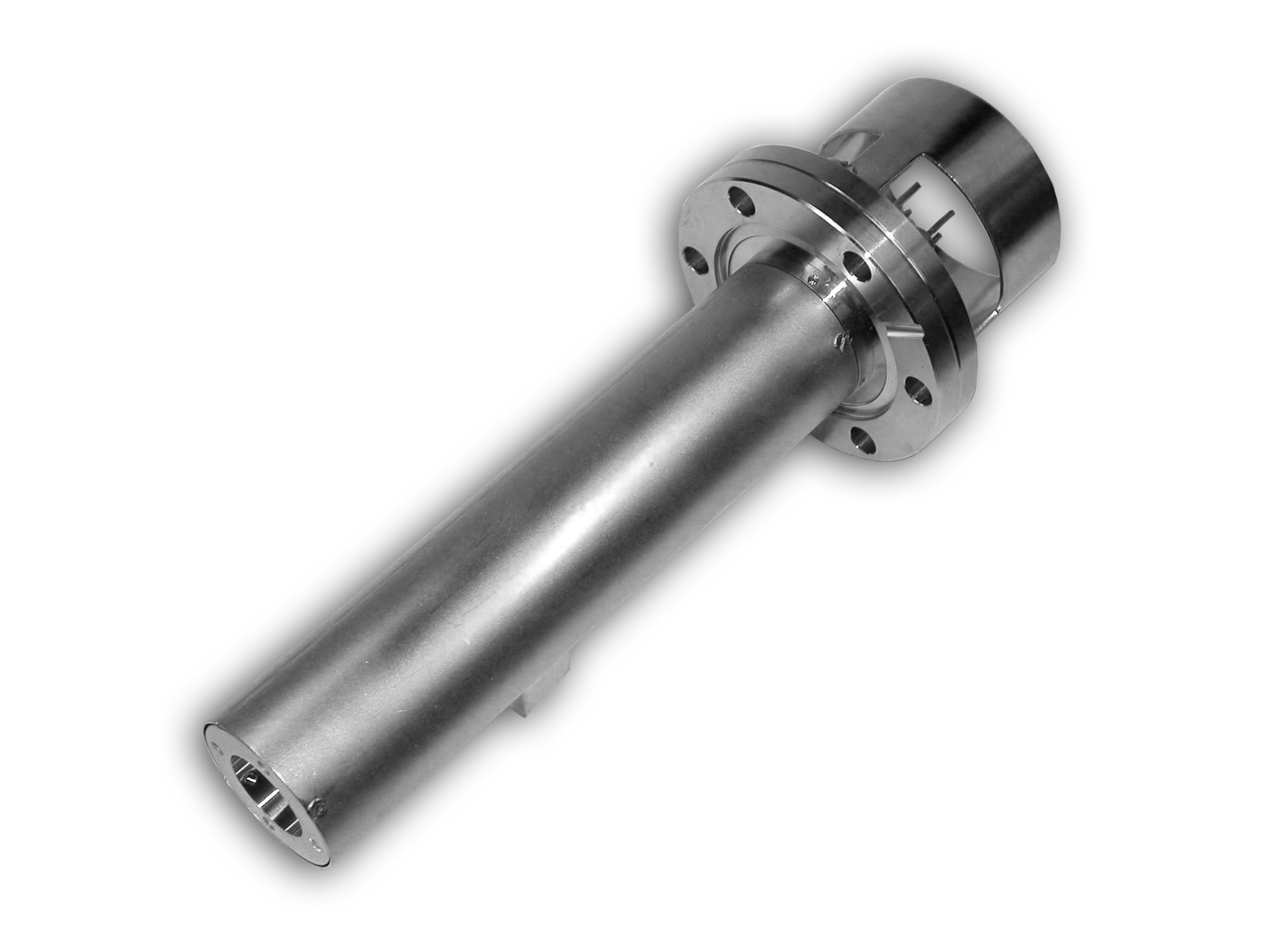

FS100 Flood Source
Robust electron source for charge neutralization of positively charged samples.
Description
For charge neutralization of positively charged samples like semiconductors or insulators in e.g. XPS/AES or SIMS experiments, OmniVac provides the FS 100 Flood Source, an easy to handle and reliable flood source.
The FS 100 provides a constant flux of low energy electrons which serve for effective charge neutralization in the region of interest.
The PS-FS 100 power supply allows for an easy control of the important working parameters, i.e. electron energy and emission current.
FS 100 Flood Source
| Kinetic energy range | 0 – 500 eV |
| Measured beam currents on sample (grounded, 25 x 25 mm²) | 0.1 µA (at 0.1 eV) 24 µA (at 1 eV) 130 µA (at 10 eV) 1500 µA (at 500 eV) |
| Beam diameter (FWHM) | 11 mm at 500 eV |
| Bakeable | up to 250 °C |
| Mounting flange | DN 40 CF |
| Insertion depth | 146 mm |
| Working distance | 40 mm |
PS-FS 100 Power Supply
| Selectable energy ranges | 0 – 10 eV and 0 – 500 eV |
| Interfaces | Electron kinetic energy |
| Dimension (W x H x D) | 19’’ x 133 mm x 374 mm |
